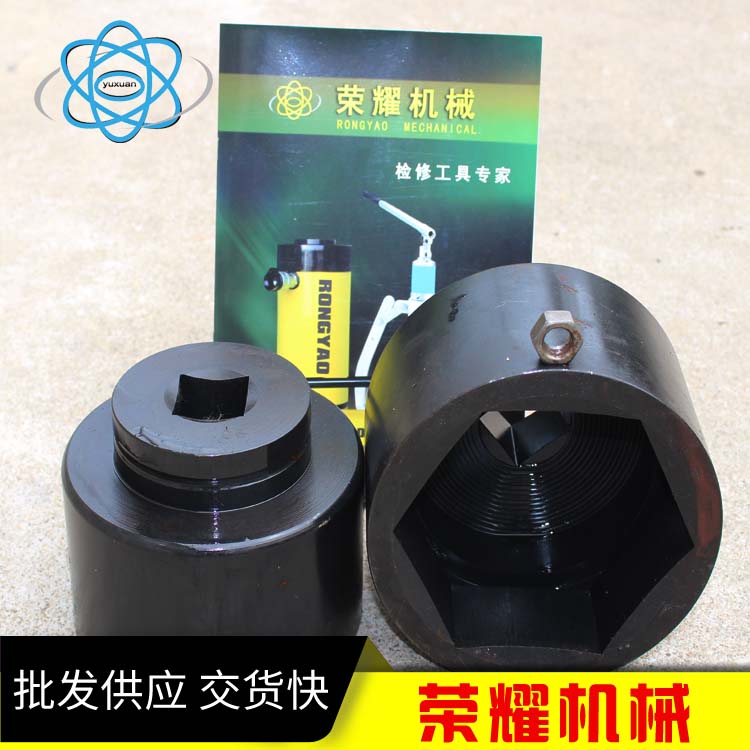

RYEA—套筒
一、基本參數（表中參數可能因?yàn)楦牧级兏�，恕不另行通�?/font>）
|
螺栓規格 |
螺母對邊mm |
輸入端方軸 |
材料 |
|
M16 |
24 |
19X19 |
45鋼/鉻鉬鋼 |
|
M20 |
30 |
19X19 |
45鋼/鉻鉬鋼 |
|
M22 |
34 |
19X19 25.4x25.4 38x38 |
45鋼/鉻鉬鋼 |
|
M24 |
36 |
19X19 25.4x25.4 38x38 |
45鋼/鉻鉬鋼 |
|
M27 |
41 |
19X19 25.4x25.4 38x38 |
45鋼/鉻鉬鋼 |
|
M30 |
46 |
19X19 25.4x25.4 38x38 |
45鋼/鉻鉬鋼 |
|
M33 |
50 |
19X19 25.4x25.4 38x38 |
45鋼/鉻鉬鋼 |
|
M36 |
55 |
25.4x25.4 38x38 51x51 64x64 |
45鋼/鉻鉬鋼 |
|
M39 |
60 |
25.4x25.4 38x38 51x51 64x64 |
45鋼/鉻鉬鋼 |
|
M42 |
65 |
25.4x25.4 38x38 51x51 64x64 |
45鋼/鉻鉬鋼 |
|
M45 |
70 |
25.4x25.4 38x38 51x51 64x64 |
45鋼/鉻鉬鋼 |
|
M48 |
75 |
25.4x25.4 38x38 51x51 64x64 |
45鋼/鉻鉬鋼 |
|
M52 |
80 |
25.4x25.4 38x38 51x51 64x64 |
45鋼/鉻鉬鋼 |
|
M56 |
85 |
25.4x25.4 38x38 51x51 64x64 |
45鋼/鉻鉬鋼 |
|
M60 |
90 |
38x38 51x51 64x64 |
45鋼/鉻鉬鋼 |
|
M64 |
95 |
38x38 51x51 64x64 |
45鋼/鉻鉬鋼 |
|
M68 |
100 |
38x38 51x51 64x64 |
45鋼/鉻鉬鋼 |
|
M72 |
105 |
38x38 51x51 64x64 |
45鋼/鉻鉬鋼 |
|
M76 |
110 |
38x38 51x51 64x64 |
45鋼/鉻鉬鋼 |
|
M80 |
115 |
38x38 51x51 64x64 |
45鋼/鉻鉬鋼 |
|
M85 |
120 |
51x51 64x64 |
45鋼/鉻鉬鋼 |
|
M90 |
130 |
51x51 64x64 |
45鋼/鉻鉬鋼 |
|
M95 |
135 |
51x51 64x64 |
45鋼/鉻鉬鋼 |
|
M100 |
145 |
51x51 64x64 |
45鋼/鉻鉬鋼 |
|
M105 |
150 |
64x64 |
45鋼/鉻鉬鋼 |
|
M110 |
155 |
64x64 |
45鋼/鉻鉬鋼 |
|
M115 |
165 |
64x64 |
45鋼/鉻鉬鋼 |
|
M120 |
175 |
64x64 |
45鋼/鉻鉬鋼 |
注：除以上規格以外，可以根據客戶的特殊要求定做。
